Jingdiao GRU
- Milling
- |5-axis high-speed CNC machining center series

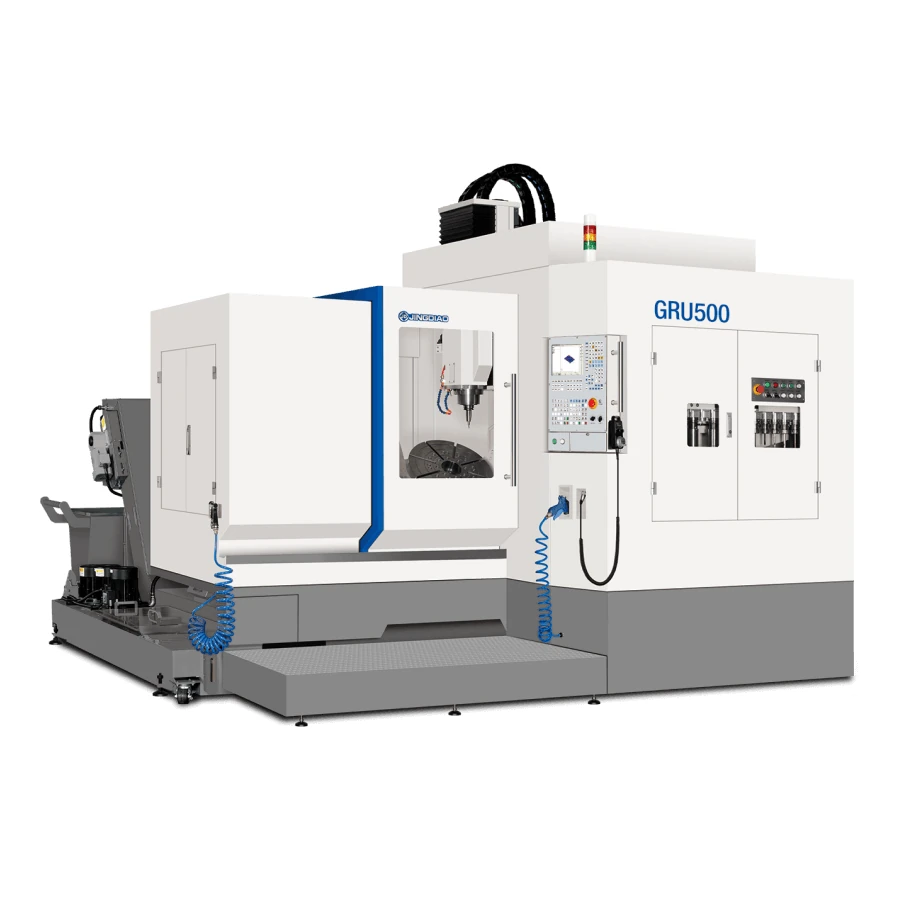

The Jingdiao GRU series brings together six 5-axis CNC machining centers with rotary table – GRU50, GRU100, GRU200, GRU300, GRU400T and GRU500 – designed to cover a wide range of sizes and precision levels. Travels grow progressively from 235 x 210 x 175 mm on the GRU50 up to 550 x 770 x 450 mm on the GRU500, while the rotary table goes from Ø110 to Ø500 mm and load capacity from 10 to 300 kg. High-speed spindles reach 36,000 rpm on the most compact models and step down to 15,000-20,000 rpm on the larger formats, where a torque of 21.5 Nm comes into play. Tool magazines range from 14 to 63 pockets and every model runs the proprietary JD50 control with SurfMill CAM. This range makes it possible to choose, within the same series, the most suitable machine based on workpiece size and required precision.
Video
CNC control
- Control
- Jingdiao JD50
- Standard programming
- ISO
- CAM
- JDSoft SurfMill (proprietary)
Models comparison (6)
| Parameter | GRU50 | GRU100 | GRU200T | GRU300 | GRU400T | GRU500 |
|---|---|---|---|---|---|---|
| Axis travel (X×Y×Z) | 235 × 210 × 175 mm | 400 × 200 × 200 mm | 500 × 280 × 300 mm | 390 × 510 × 300 mm | 450 × 680 × 400 mm | 550 × 720 × 450 mm |
| Swing diameter | Ø110 mm | Ø160 mm | Ø260 mm | Ø300 mm | Ø400 mm | Ø500 mm |
| Table load capacity | 10 kg | 15 kg | 30 kg | 100 kg | 150 kg | 300 kg |
| Spindle – speed | 32000–36000 rpm (second spindle) | 24000–32000 rpm (sub-spindle) | 20000–32000 rpm (to be confirmed) | 20000–32000 rpm (second spindle) | 20000 rpm | 15000–20000 rpm (sub-spindle) |
| Spindle – torque | 21.5 Nm | 21.5 Nm | 21.5 Nm | 21.5 Nm | 21.5 Nm | 21.5 Nm |
| Spindle – taper / mount | ISO20 / HSK-E32 | HSK-E32 / BT30 | HSK-E32 / BT30 / HSK-A50 | HSK-E32 / HSK-A50 | HSK-A50 | HSK-A50 / HSK-A63 |
| Number of axes | 5 axes | 5 axes | 5 axes | 5 axes | 5 axes | 5 axes |
| Tool magazine – capacity | 21 tools | 14–16 tools (umbrella-type, depending on configuration) | 37 or 63 tools (chain type, to be confirmed) | 24 (umbrella-type) or 37 (chain-type) tools | 37 tools (chain type) | 37 (standard) or 63 (optional) tools, chain-type |
| Tool magazine – type | Chain type | Umbrella type | Chain type | Umbrella-type or chain-type | Chain type | Chain type |
| CNC – model | JD50 | JD50 | JD50 | JD50 | JD50 | JD50 |
