Neway PM-HP
- Milling
- |CNC double-column machining center (series)

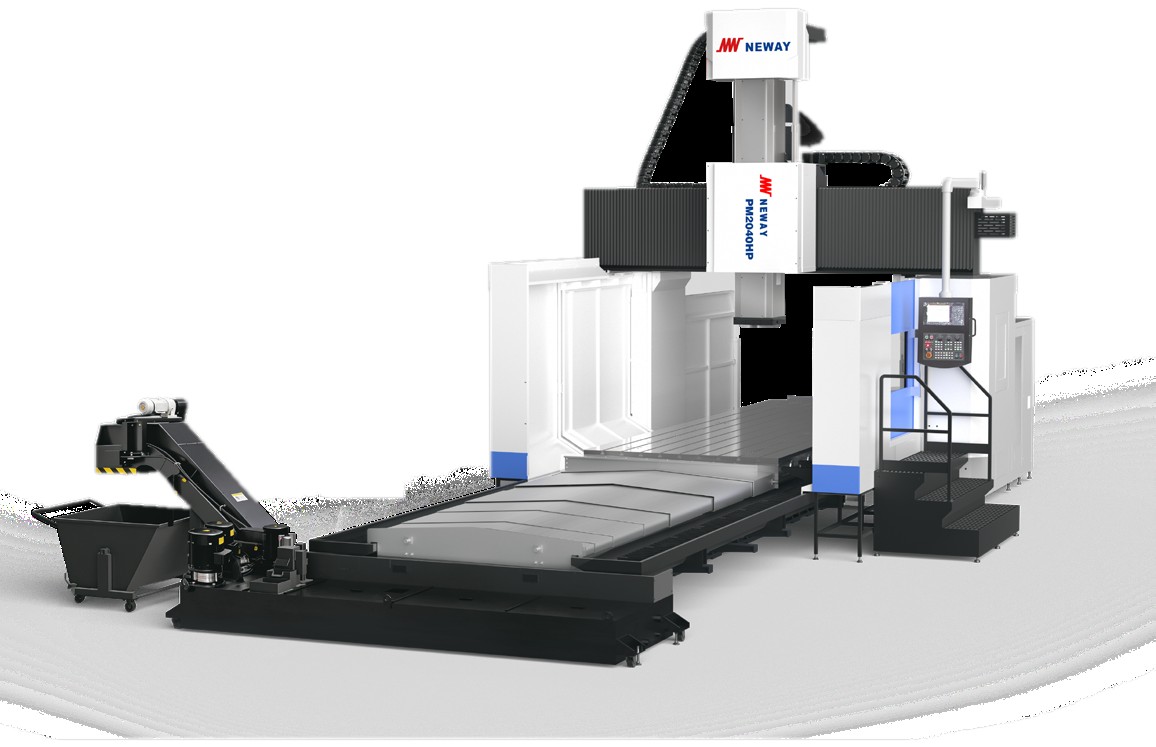

The Neway PM-HP series brings together double-column (gantry) machining centres dedicated to milling large parts, with the widest range in the PM family: thirteen sizes, from PM1320HP to PM30100HP. The representative PM2040HP size provides travels of 4,200 mm (X), 3,200 mm (Y) and 1,000 mm (Z), a 2,800 mm column clearance, a 2,000 x 4,000 mm table rated up to 20,000 kg. The BT50 spindle delivers 22 kW continuous and 26 kW peak and turns up to 4,500 rpm, with torque from 993 to 1,177 Nm; the magazine holds 24 tools and the control is Neway Fanuc (Siemens optional). The double-column gantry structure offers rigidity and stability for heavy machining of moulds, structural components and large frames.
CNC control
- Control
- Fanuc 0i-MF PlusHeidenhain TNC640 / TNC620Mitsubishi Meldas M800Siemens Sinumerik 808D
- Standard programming
- ISO / Klartext
- Conversational programming
- Manual Guide iKlartextNAVI MILL
- CAM
- Third-party CAM
Model parameters
| Parameter | PM2040HP |
|---|---|
| Axis travel (X×Y×Z) | 4200 × 3200 × 1000 mm |
| Table load capacity | 20000 kg |
| Table size (X×Y) | 2000 × 4000 mm |
| Spindle – speed | 4500 rpm |
| Spindle power (continuous) | 22 kW |
| Spindle power (peak) | 26 kW |
| Spindle – torque | 993 (S1) – 1177 (S6) Nm |
| Spindle – taper / mount | BT50 |
| Number of axes | 3 axes |
| Tool magazine – capacity | 24 |
| Distance between columns | 2800 mm |
| Rapid traverse | 15 m/min |
| CNC – model | NEWAY FANUC [SIEMENS] |
